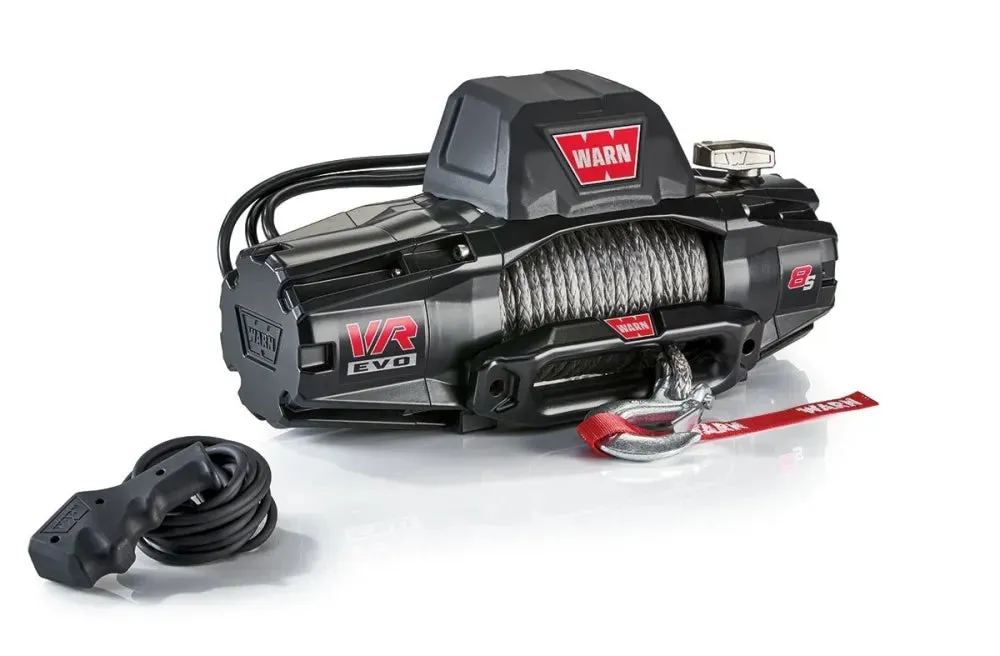

Introducing the Warn VR Evo 8-S Winch
The Warn VR Evo 8-S 12v Winch is ideal on lighter 4x4's to enable getting yourself out of trouble with ease.
While first-rate tyres, lift and torque can get you through challenging landscapes, even the best rig can land in trouble with mud, rocks, ice or impassible ditches. Get your vehicle out of tough situations with a Warn VR Evo 8-S winch with synthetic rope. You're sure to encounter unpredictable terrain in any off-road adventure.
Whether you're thrown off track by a loose boulder or trapped in slick swampy muck, that shouldn't keep you from charging on to the next obstacle. Ensure you're equipped to handle whatever the weather or topography throws at you. Prep your Jeep or SUV for self-recovery with the die-hard tenacity of a reliable retrofit winch.
Features
- IP68-rated waterproof winch construction keeps the elements out.
- A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw.
- High-performance Albright contactor delivers maximum reliability.
- Control packs can be relocated for low-profile installations.
- Durable, one-piece cast-aluminium tie-plate for added strength and durability.
- Two-in-one remote with wired AND wireless options for ease of use and versatility.
Warn VR Evo 8-S Winch Specifications
Part number: | EVO-8-S-103251 |
Dust & water rating: | IP68 |
Fairlead: | Hawse |
Rated line Pull: | 8000lb (3629kg) single line |
Wireless Control: | Pendant Wired & Wireless |
Motor: | Series Wound |
Recommended battery: | 650CA minimum for winching |
Control: | Pendant 3.5m |
Battery leads: | 25mm x 2m |
Gear train: | 3 Stage Planetary |
Gear ratio: | 218:1 |
Finish: | Powder coated over primer |
Weight: | 25.1kgs |
Clutch: | Rotating ring gear |
Bolt pattern: | 254mm x 114.3mm |
Brake: | Spring Brake |

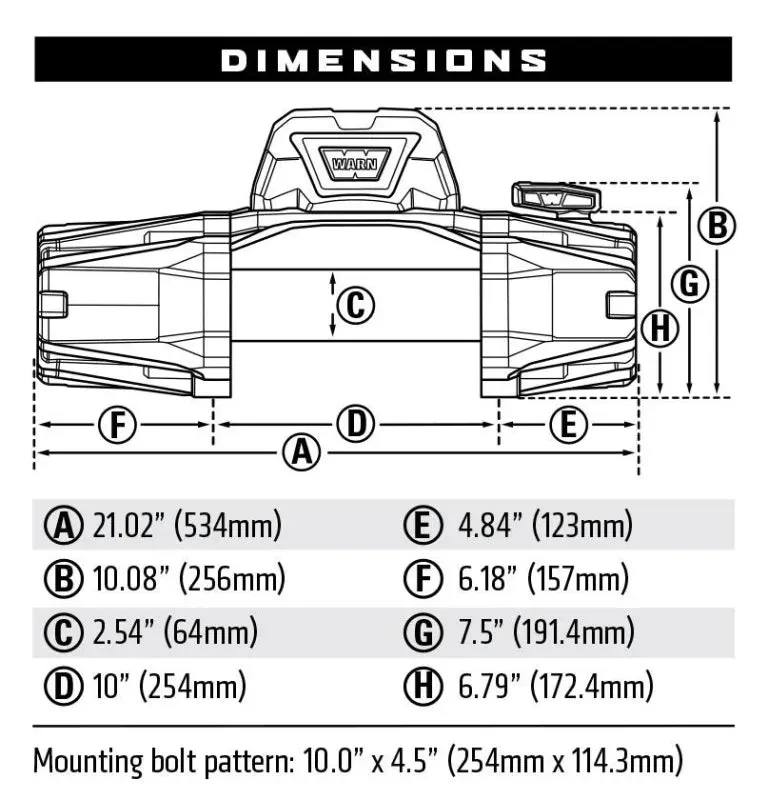

Overall dimensions (LxWxH): | 534mm x160.5mm x 256mm |
Drum size: | 64mm x 230mm |
Cable type: | Synthetic Rope |
Cable: | 9.5mm x 27.4m |
